Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth44mm
Voltage typeAC
Rated current125A
Frequency50 - 60Hz
Rated voltage400V
Release characteristicC
Width in number of modular spacings4.5
Connectable conductor cross section multi-wired1 - 35mm²
Over voltage category4
Pollution degree3
Connectable conductor cross section solid-core1.5 - 50mm²
Rated insulation voltage Ui500V
Explosion-proofNo
Degree of protection (IP)IP20
Number of protected poles3
Current limiting class3
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Number of poles (total)3
Additional equipment possibleYes
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

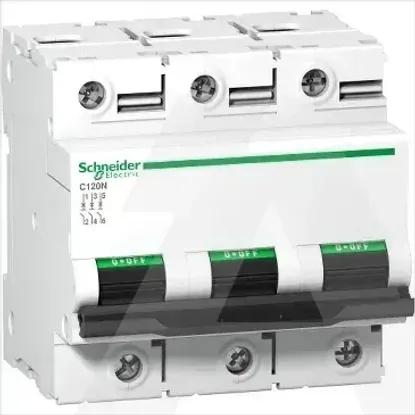

A9N18369 | Prekidac Minijat. C120N 10KA 3P 125 C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Voltage type
AC
Rated current
125A
Frequency
50 .. 60Hz
Rated voltage
400V
Release characteristic
C
Width in number of modular spacings
4.5
Connectable conductor cross section multi-wired
1 .. 35mm²
Over voltage category
4
Pollution degree
3
Connectable conductor cross section solid-core
1.5 .. 50mm²
Rated insulation voltage Ui
500V
Explosion-proof
Degree of protection (IP)
IP20
Number of protected poles
3
Current limiting class
3
Concurrently switching neutral conductor
Flush-mounted installation
Number of poles (total)
3
Additional equipment possible
Ambient temperature during operating
-25 .. 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20kA
Rated impulse withstand voltage Uimp
6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
