Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Release characteristicC
Width in number of modular spacings6
Explosion-proofNo
Degree of protection (IP)IP20
Pollution degree3
Concurrently switching neutral conductorYes
Flush-mounted installationNo
Additional equipment possibleYes
Ambient temperature during operating-25 - 70°C
Built-in depth50mm
Rated current80A
Rated voltage415V
Frequency50 - 60Hz
Rated insulation voltage Ui415V
Current limiting class80
Over voltage category415
Number of protected poles4
Connectable conductor cross section solid-core1 - 50mm²
Connectable conductor cross section multi-wired1 - 50mm²
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp415kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

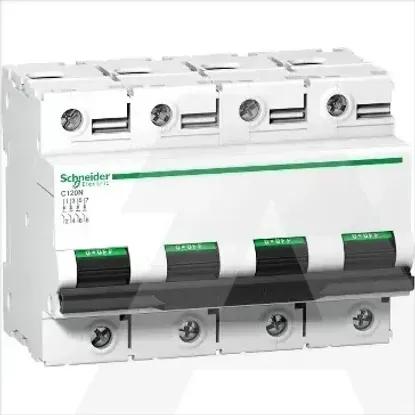

A9N18372 | Prekidac Minijat. C120N 10KA 4P 80A C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Release characteristic
C
Width in number of modular spacings
6
Explosion-proof
Degree of protection (IP)
IP20
Pollution degree
3
Concurrently switching neutral conductor
Flush-mounted installation
Additional equipment possible
Ambient temperature during operating
-25 .. 70°C
Built-in depth
50mm
Rated current
80A
Rated voltage
415V
Frequency
50 .. 60Hz
Rated insulation voltage Ui
415V
Current limiting class
80
Over voltage category
415
Number of protected poles
4
Connectable conductor cross section solid-core
1 .. 50mm²
Connectable conductor cross section multi-wired
1 .. 50mm²
Number of poles (total)
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated impulse withstand voltage Uimp
415kV
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
