Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated current80A
Frequency50 - 60Hz
Release characteristicD
Rated insulation voltage Ui500V
Voltage typeAC
Rated voltage230V
Built-in depth44mm
Degree of protection (IP)IP20
Over voltage category4
Width in number of modular spacings1.5
Current limiting class3
Pollution degree3
Explosion-proofNo
Connectable conductor cross section solid-core1.5 - 50mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Number of protected poles1
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V3kA
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section multi-wired1 - 35mm²
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Ambient temperature during operating-25 - 70°C
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

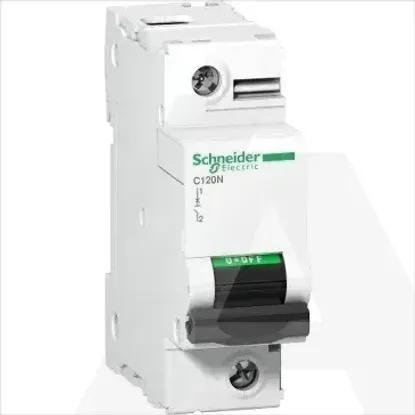

A9N18379 | Prekidac Minijat. C120N 10KA 1P 80A D
