Details

  • •
  • •Circuit breakers and fuses

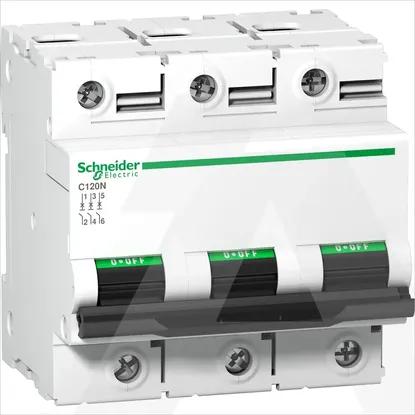

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Rated voltage400V
Voltage typeAC
Built-in depth44mm
Over voltage category4
Explosion-proofNo
Rated insulation voltage Ui500V
Pollution degree3
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp6kV
Frequency50 - 60Hz
Connectable conductor cross section solid-core1.5 - 50mm²
Number of protected poles3
Ambient temperature during operating-25 - 70°C
Width in number of modular spacings4.5
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Connectable conductor cross section multi-wired1 - 35mm²
Additional equipment possibleYes
Degree of protection (IP)IP20
Current limiting class3
Rated current63A
Release characteristicD
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
