Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Voltage typeAC
Built-in depth73mm
Number of protected poles2
Release characteristicD
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Over voltage category4
Rated current63A
Degree of protection (IP)IP20
Width in number of modular spacings1.5
Number of poles (total)1
Rated voltage415V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Frequency50 - 60Hz
Additional equipment possibleYes
Pollution degree3
Current limiting class3
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V4.5kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

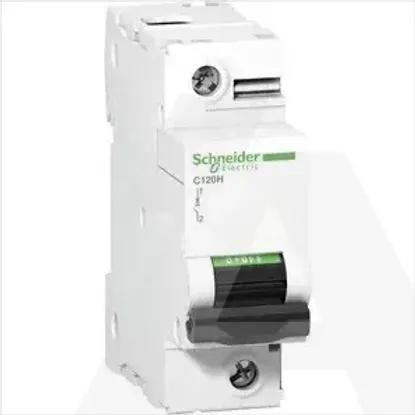

A9N18489 | Prekidac Minijat. C120H 15KA 1P 63A D

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Voltage type

AC

Built-in depth

73mm

Number of protected poles

2

Release characteristic

D

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Suitable for flush-mounted installation

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Over voltage category

4

Rated current

63A

Degree of protection (IP)

IP20

Width in number of modular spacings

1.5

Number of poles (total)

1

Rated voltage

415V

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

15kA

Frequency

50 .. 60Hz

Additional equipment possible

Pollution degree

3

Current limiting class

3

Concurrently switching neutral conductor

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

4.5kA

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
