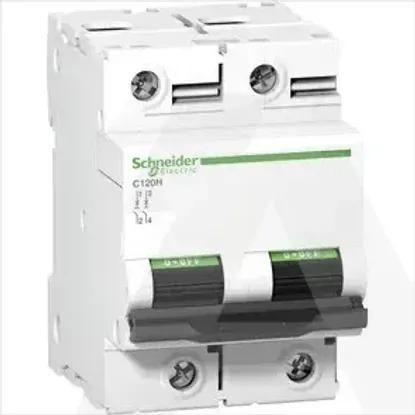

A9N18501 | Prekidac Minijat. C120H 15KA 2P 80A D
Code: 1694721
ManufacturerSchneider Electric
Catalog numberA9N18501
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code3606480380723
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth73mm
Current limiting class3
Frequency50 - 60Hz
Width in number of modular spacings3
Rated voltage415V
Voltage typeAC
Pollution degree3
Over voltage category4
Degree of protection (IP)IP20
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30kA
Suitable for flush-mounted installationNo
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated current80A
Release characteristicD
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
