Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Built-in depth73mm
Rated current100A
Frequency50 - 60Hz
Over voltage category4
Voltage typeAC
Release characteristicD
Rated voltage400V
Current limiting class3
Pollution degree3
Additional equipment possibleYes
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Concurrently switching neutral conductorNo
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Number of protected poles3
Width in number of modular spacings4.5
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

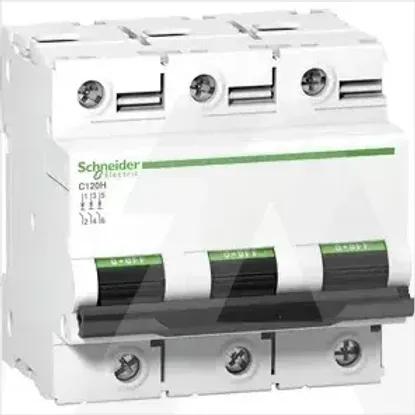

A9N18513 | Prekidac Minijat. C120H 15KA 3P 100A D

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Built-in depth

73mm

Rated current

100A

Frequency

50 .. 60Hz

Over voltage category

4

Voltage type

AC

Release characteristic

D

Rated voltage

400V

Current limiting class

3

Pollution degree

3

Additional equipment possible

Suitable for flush-mounted installation

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Concurrently switching neutral conductor

Number of poles (total)

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

15kA

Number of protected poles

3

Width in number of modular spacings

4.5

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

30kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

15kA

Degree of protection (IP)

IP20
