  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Built-in depth73mm
Voltage typeAC
Release characteristicD
Rated voltage400V
Rated current100A
Frequency50 - 60Hz
Degree of protection (IP)IP20
Pollution degree3
Over voltage category4
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30kA
Suitable for flush-mounted installationNo
Current limiting class3
Number of protected poles4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of poles (total)4
Width in number of modular spacings6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

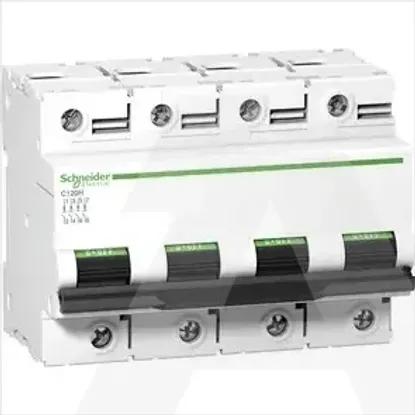

A9N18524 | Prekidac Minijat. C120H 15KA 4P 100A D
