Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •SCHNEIDER
Technical specifications
Nominal voltage230 - 415V
Ambient temperature during operating25 - 60°C
Connectable conductor cross section multi-wired1 - 35mm²
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 50mm²
Nominal current125A
With interlocking deviceNo
Frequency50/60 Hz
Number of poles4
Rated fault current adjustableNo
Surge current capacity0.250kA
Rated insulation voltage Ui500V
Rated fault current0.3 - 0.3A
Anti-nuisance tripping versionNo
Max. delay time0ms
Delay adjustableNo
Leakage current typeA
Pollution degree3
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

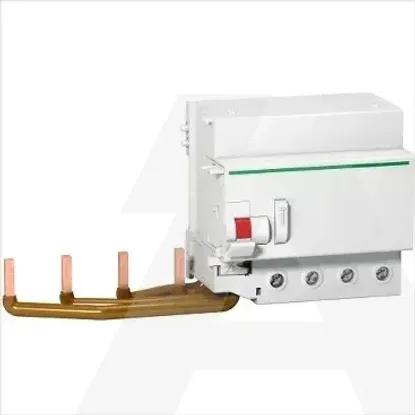

A9N18579 | Vigi Modul za C120 4P 300MA TIP a
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB) module
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Nominal voltage
230 .. 415V
Ambient temperature during operating
25 .. 60°C
Connectable conductor cross section multi-wired
1 .. 35mm²
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 .. 50mm²
Nominal current
125A
With interlocking device
Frequency
50/60 Hz
Number of poles
4
Rated fault current adjustable
Surge current capacity
0.250kA
Rated insulation voltage Ui
500V
Rated fault current
0.3 .. 0.3A
Anti-nuisance tripping version
Max. delay time
0ms
Delay adjustable
Leakage current type
A
Pollution degree
3
Rated impulse withstand voltage Uimp
6kV
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
