Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB) module
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated insulation voltage Ui500V
Nominal current125A
Number of poles3
Max. delay time0ms
Leakage current typeA
Pollution degree3
Nominal voltage400 - 415V
Degree of protection (IP)IP20
Delay adjustableNo
Frequency50 Hz
Connectable conductor cross section solid-core1 - 50mm²
Rated fault current0.03 - 0.03A
Surge current capacity3kA
Anti-nuisance tripping versionYes
With interlocking deviceNo
Connectable conductor cross section multi-wired1 - 35mm²
Rated fault current adjustableNo
Rated impulse withstand voltage Uimp6kV
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

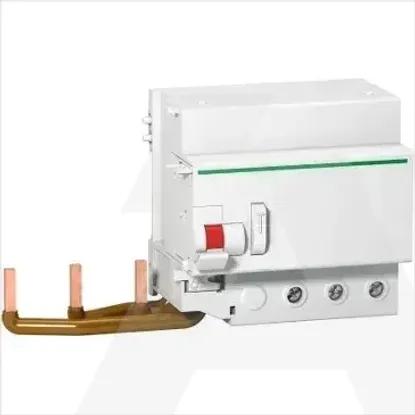

A9N18594 | Vigi Modul za C120 3P 30MA TIP SI
