Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated voltage220V
Rated current32A
Current limiting class0
Voltage typeDC
Concurrently switching neutral conductorNo
Width in number of modular spacings2
Built-in depth44mm
Pollution degree3
Degree of protection (IP)IP20
Frequency- - -Hz
Number of protected poles1
Explosion-proofNo
Release characteristicC
Over voltage category4
Rated insulation voltage Ui500V
Number of poles (total)1
Additional equipment possibleYes
Ambient temperature during operating-25 - 70°C
Connectable conductor cross section multi-wired1 - 25mm²
Flush-mounted installationNo
Connectable conductor cross section solid-core1 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

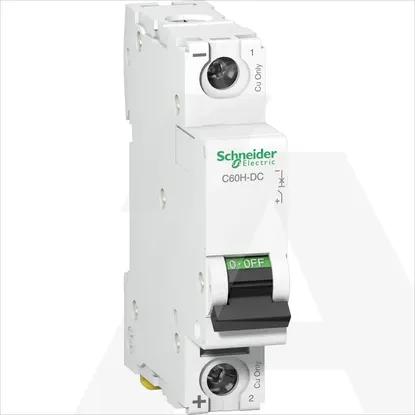

A9N61515 | Prekidac Minijaturni C60H-DC 1P 32A C
