Details

  • •

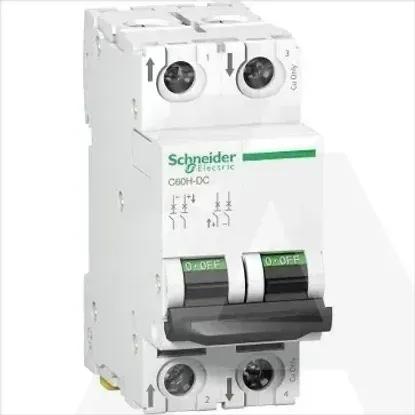

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Rated voltage440V
Pollution degree3
Voltage typeDC
Frequency- - -Hz
Built-in depth44mm
Connectable conductor cross section multi-wired1 - 16mm²
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-25 - 70°C
Width in number of modular spacings2
Number of protected poles2
Degree of protection (IP)IP20
Rated insulation voltage Ui500V
Concurrently switching neutral conductorNo
Current limiting class-
Explosion-proofNo
Over voltage category4
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Additional equipment possibleYes
Rated current6A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
