Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Built-in depth73mm
Voltage typeDC
Rated voltage440V
Release characteristicC
Frequency50 - 60Hz
Rated current13A
Width in number of modular spacings4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Over voltage category4
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Additional equipment possibleYes
Number of protected poles1
Current limiting class0
Number of poles (total)2
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Pollution degree3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

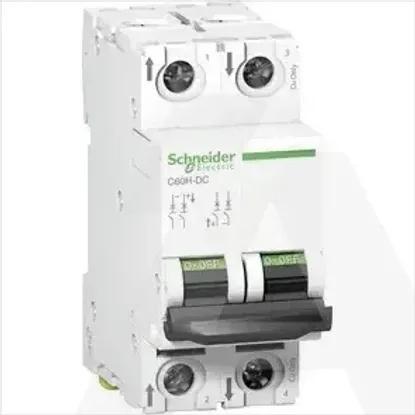

A9N61529 | Prekidac Minijaturni C60H-DC 2P 13A C
