Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Pollution degree3
Rated insulation voltage Ui500V
Number of poles2
Rated voltage230V
Rated current80A
Leakage current typeAC
Voltage typeAC
Short-circuit breaking capacity (Icw)1.5kA
Rated fault current0.03A
Surge current capacity0.25kA
Selective protectionNo
Mounting methodDIN rail
Width in number of modular spacings2
Explosion-proofNo
Short-time delayed trippingNo
Degree of protection (IP)IP20
Frequency50/60 Hz
Built-in depth44mm
Ambient temperature during operating-5 - 60°C
Additional equipment possibleYes
Rated impulse withstand voltage Uimp6kV
With interlocking deviceYes
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

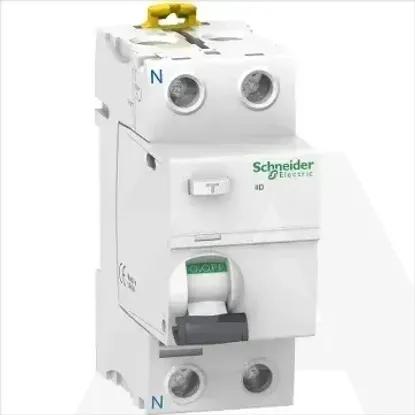

A9R11280 | Dif. Zaš. Sklopka iID 2P 80A 30MA AC
