Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Voltage typeAC
Selective protectionNo
Short-circuit breaking capacity (Icw)1.5kA
Rated insulation voltage Ui500V
Surge current capacity0.25kA
Pollution degree3
Width in number of modular spacings4
Short-time delayed trippingNo
Explosion-proofNo
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 35mm²
Connectable conductor cross section multi-wired1 - 25mm²
With interlocking deviceYes
Frequency50/60 Hz
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Rated current40A
Rated voltage415V
Number of poles4
Rated fault current0.1A
Leakage current typeA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

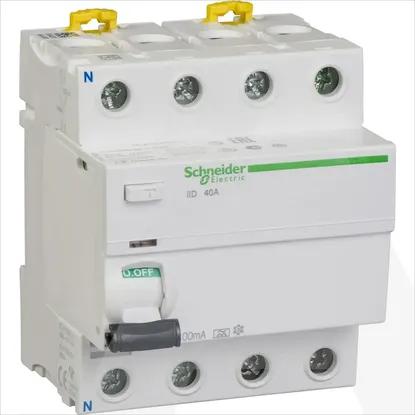

A9R22440 | Dif. Zaš. Sklopka iID 4P 40A 100MA a
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Mounting method
DIN rail
Voltage type
AC
Selective protection
Short-circuit breaking capacity (Icw)
1.5kA
Rated insulation voltage Ui
500V
Surge current capacity
0.25kA
Pollution degree
3
Width in number of modular spacings
4
Short-time delayed tripping
Explosion-proof
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 .. 35mm²
Connectable conductor cross section multi-wired
1 .. 25mm²
With interlocking device
Frequency
50/60 Hz
Rated impulse withstand voltage Uimp
6kV
Additional equipment possible
Ambient temperature during operating
-25 .. 60°C
Rated current
40A
Rated voltage
415V
Number of poles
4
Rated fault current
0.1A
Leakage current type
A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
