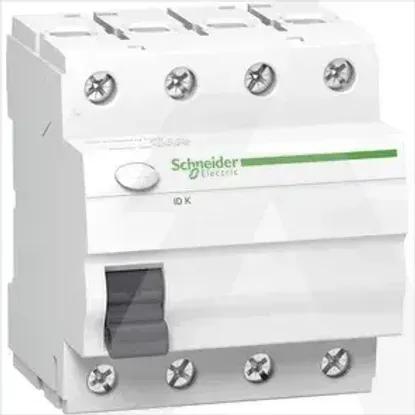

A9Z01463 | Str. Zaš. Skl. ID K 4P 63A 30 mA TIP a
Code: 1695165
ManufacturerSchneider Electric
Catalog numberA9Z01463
TypeResidual current circuit breaker (RCCB)
EAN code3606480482793
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth68mm
Selective protectionNo
Mounting methodDIN rail
Short-circuit breaking capacity (Icw)0kA
Surge current capacity0.2kA
Construction size (according to DIN 43880)4
Short-time delayed trippingNo
Degree of protection (IP)IP20
Additional equipment possibleYes
Frequency50/60 Hz
Width in number of modular spacings4
Rated current63A
Rated voltage400V
Number of poles4
Rated fault current0.03A
Leakage current typeA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
A9Z01463 | Str. Zaš. Skl. ID K 4P 63A 30 mA TIP a
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
68mm
Selective protection
Mounting method
DIN rail
Short-circuit breaking capacity (Icw)
0kA
Surge current capacity
0.2kA
Construction size (according to DIN 43880)
4
Short-time delayed tripping
Degree of protection (IP)
IP20
Additional equipment possible
Frequency
50/60 Hz
Width in number of modular spacings
4
Rated current
63A
Rated voltage
400V
Number of poles
4
Rated fault current
0.03A
Leakage current type
A
