Details
- •Sensors
- •Passive sensor-actuator interface (with cable)
- •1 KOM
- •SCHNEIDER
Technical specifications
Material housingPlastic, metallized
Colour housingGrey
Width106mm
Depth64mm
Height63mm
Operating temperature-5 - 60°C
Operating voltage24 - 24V
Number of channels per connector slot16
With potential separationNo
Connection for NPN-sensorsNo
Max. current carrying capacity per socket1.8A
Material of contact surfaceOther
Max. current carrying capacity per I/O signal0.5A
Explosion safety category for dustNone
Max. total current1.8A
Explosion safety category for gasNone
Cable length configurableYes
Type of connector for trunk lineOther
Number of poles sensor/actuator slots16
Type of branches for sensor-/actuator cablesOther
Material insulation bodyOther
Cable outer diameter for cable gland0.09 - 2.5mm
Diameter contact female2.5mm
Pollution degree2
Fix cable version suitable for cable guide chainNo
Thread sleeves sensor/actuator slotsOther
With LED indicationYes
Material contact bodyOther copper alloys
Connectable conductor cross section0.09 - 2.5mm²
Rated voltage24V
Degree of protection (IP)IP2X
Number of sensor-/actuator-slots1
Length of the preassembled cable-m
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

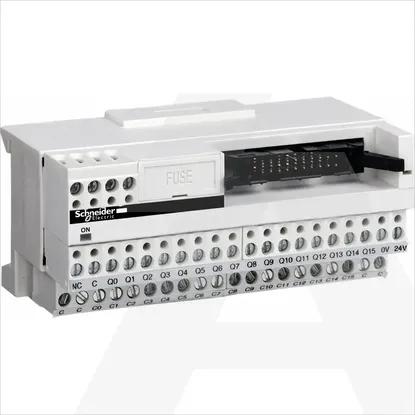

ABE7H16C11 | Baza 16IO, 1 Red, LED Optimum
