Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width72mm
Height143mm
Number of digital inputs4
Depth1212mm
With control elementYes
Number of digital outputs1
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Number of analogue inputs1
Number of analogue outputs1
Supporting protocol for LONNo
Supporting protocol for PROFIBUSNo
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4851
Number of HW-interfaces other8
With optical interfaceNo
Number of HW-interfaces USB0
Supporting protocol for TCP/IPNo
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetNo
Supporting protocol for INTERBUSNo
Supporting protocol for CANNo
Supporting protocol for ASINo
With PC connectionYes
Degree of protection (IP)IP20
Supporting protocol for other bus systemsNo
Supporting protocol for SUCONETNo
Mains voltage100 - 120V
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
4-quadrant operation possibleNo
Mains frequency50/60 Hz
Type of converterU converter
Number of phases input1
Number of interfaces PROFINET0
Application in domestic- and commercial area permittedYes
Application in industrial area permittedYes
Max. output frequency400Hz
Integrated breaking resistanceNo
Max. output at quadratic load at rated output voltage0.37kW
Max. output at linear load at rated output voltage0.37kW
Number of phases output3
Relative symmetric net frequency tolerance5%
Relative symmetric net voltage tolerance10%
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Max. output voltage230V
Supporting protocol for BACnetNo
Nominal output current I2N2.4A
Supporting protocol for PROFINET IONo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

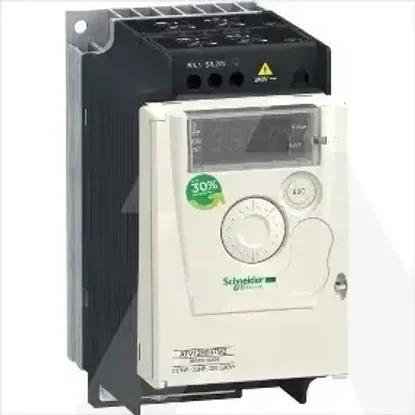

ATV12H037F1 | Pretvarac Frek. ATV12 0,37 KW Hladnjak
