Details
- •Low-voltage switchgear and control gear (automation)
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width72mm
Height143mm
Depth131.2mm
Number of digital inputs4
Number of digital outputs1
Number of analogue inputs1
Number of analogue outputs1
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Number of HW-interfaces other8
With optical interfaceNo
Supporting protocol for TCP/IPNo
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
Degree of protection (IP)IP20
With PC connectionYes
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Mains voltage200 - 240V
Mains frequency50/60 Hz
4-quadrant operation possibleNo
Number of interfaces PROFINET0
Type of converterU converter
Number of phases output3
Number of phases input1
Integrated breaking resistanceNo
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Max. output frequency400Hz
Max. output at quadratic load at rated output voltage0.55kW
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Max. output voltage230V
Supporting protocol for BACnetNo
Max. output at linear load at rated output voltage0.55kW
With control elementYes
Nominal output current I2N3.5A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

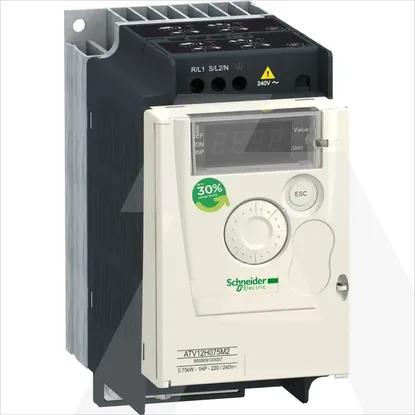

ATV12H055M2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage switchgear and control gear (automation)
- Frequency converter =< 1 kV
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Width
72mm
Height
143mm
Depth
131.2mm
Number of digital inputs
4
Number of digital outputs
1
Number of analogue inputs
1
Number of analogue outputs
1
Supporting protocol for LON
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
8
With optical interface
Supporting protocol for TCP/IP
Supporting protocol for ASI
Supporting protocol for PROFIBUS
Supporting protocol for CAN
Supporting protocol for INTERBUS
Supporting protocol for KNX
Supporting protocol for Modbus
Supporting protocol for Data-Highway
Supporting protocol for DeviceNet
Supporting protocol for SUCONET
Supporting protocol for other bus systems
Degree of protection (IP)
IP20
With PC connection
Supporting protocol for SERCOS
Supporting protocol for INTERBUS-Safety
Mains voltage
200 .. 240V
Mains frequency
50/60 Hz
4-quadrant operation possible
Number of interfaces PROFINET
0
Type of converter
U converter
Number of phases output
3
Number of phases input
1
Integrated breaking resistance
Application in industrial area permitted
Application in domestic- and commercial area permitted
Max. output frequency
400Hz
Max. output at quadratic load at rated output voltage
0.55kW
Relative symmetric net voltage tolerance
10%
Relative symmetric net frequency tolerance
5%
Supporting protocol for AS-Interface Safety at Work
Supporting protocol for DeviceNet Safety
Supporting protocol for EtherNet/IP
Supporting protocol for Foundation Fieldbus
Supporting protocol for PROFINET CBA
Supporting protocol for PROFINET IO
Supporting protocol for PROFIsafe
Supporting protocol for SafetyBUS p
Max. output voltage
230V
Supporting protocol for BACnet
Max. output at linear load at rated output voltage
0.55kW
With control element
Nominal output current I2N
3.5A
