Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital outputs1
Width105mm
Height142mm
Number of analogue outputs1
Number of analogue inputs1
Depth156.2mm
With control elementYes
Number of digital inputs4
Supporting protocol for LONNo
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4851
Supporting protocol for PROFIBUSNo
Number of HW-interfaces other8
Number of HW-interfaces RS-2320
With optical interfaceNo
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Supporting protocol for ASINo
Number of HW-interfaces USB0
Supporting protocol for INTERBUSNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Mains voltage200 - 240V
Supporting protocol for ModbusYes
Supporting protocol for SERCOSNo
Supporting protocol for Data-HighwayNo
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SUCONETNo
Supporting protocol for KNXNo
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsNo
With PC connectionYes
Max. output at quadratic load at rated output voltage1.5kW
Max. output at linear load at rated output voltage1.5kW
Type of converterU converter
Number of interfaces PROFINET0
Application in domestic- and commercial area permittedYes
Mains frequency50/60 Hz
Relative symmetric net frequency tolerance5%
Application in industrial area permittedYes
Max. output frequency400Hz
Supporting protocol for AS-Interface Safety at WorkNo
4-quadrant operation possibleNo
Integrated breaking resistanceNo
Number of phases output3
Relative symmetric net voltage tolerance10%
Nominal output current I2N7.5A
Supporting protocol for BACnetNo
Supporting protocol for EtherNet/IPNo
Max. output voltage230V
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Number of phases input1
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET IONo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

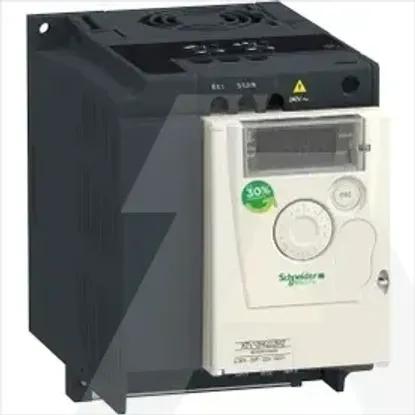

ATV12HU15M2 | Pretvarac Frek. ATV12 1,5 KW Hladnjak
