Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Width140mm
Height184mm
With control elementYes
Depth141.2mm
Number of digital inputs4
Number of analogue outputs1
Number of HW-interfaces RS-4220
Number of analogue inputs1
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet0
Number of digital outputs1
Number of HW-interfaces RS-2320
Number of HW-interfaces other8
Supporting protocol for TCP/IPNo
Supporting protocol for ASINo
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUSNo
With optical interfaceNo
Supporting protocol for Data-HighwayNo
Number of HW-interfaces RS-4851
Supporting protocol for SUCONETNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for INTERBUS-SafetyNo
4-quadrant operation possibleNo
Number of interfaces PROFINET0
Mains frequency50/60 Hz
With PC connectionYes
Supporting protocol for KNXNo
Supporting protocol for SERCOSNo
Supporting protocol for other bus systemsNo
Application in domestic- and commercial area permittedYes
Relative symmetric net frequency tolerance5%
Max. output frequency400Hz
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET CBANo
Integrated breaking resistanceNo
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for Foundation FieldbusNo
Relative symmetric net voltage tolerance10%
Type of converterU converter
Application in industrial area permittedYes
Supporting protocol for SafetyBUS pNo
Max. output voltage230V
Max. output at quadratic load at rated output voltage3kW
Supporting protocol for PROFINET IONo
Supporting protocol for BACnetNo
Degree of protection (IP)IP20
Mains voltage200 - 240V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage3kW
Nominal output current I2N12.2A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

ATV12HU30M3 | Pretvarac Frek. ATV12 3 KW Hladnjak

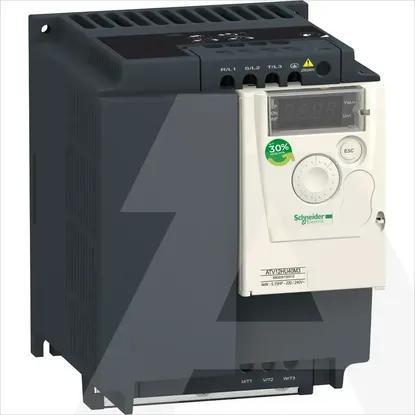

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • SCHNEIDER

Technical specifications

Width

140mm

Height

184mm

With control element

Depth

141.2mm

Number of digital inputs

4

Number of analogue outputs

1

Number of HW-interfaces RS-422

0

Number of analogue inputs

1

Supporting protocol for LON

Number of HW-interfaces industrial Ethernet

0

Number of digital outputs

1

Number of HW-interfaces RS-232

0

Number of HW-interfaces other

8

Supporting protocol for TCP/IP

Supporting protocol for ASI

Number of HW-interfaces parallel

0

Supporting protocol for PROFIBUS

With optical interface

Supporting protocol for Data-Highway

Number of HW-interfaces RS-485

1

Supporting protocol for SUCONET

Number of HW-interfaces serial TTY

0

Number of HW-interfaces USB

0

Supporting protocol for Modbus

Supporting protocol for DeviceNet

Supporting protocol for CAN

Supporting protocol for INTERBUS

Supporting protocol for INTERBUS-Safety

4-quadrant operation possible

Number of interfaces PROFINET

0

Mains frequency

50/60 Hz

With PC connection

Supporting protocol for KNX

Supporting protocol for SERCOS

Supporting protocol for other bus systems

Application in domestic- and commercial area permitted

Relative symmetric net frequency tolerance

5%

Max. output frequency

400Hz

Supporting protocol for EtherNet/IP

Supporting protocol for PROFINET CBA

Integrated breaking resistance

Supporting protocol for PROFIsafe

Supporting protocol for AS-Interface Safety at Work

Supporting protocol for DeviceNet Safety

Supporting protocol for Foundation Fieldbus

Relative symmetric net voltage tolerance

10%

Type of converter

U converter

Application in industrial area permitted

Supporting protocol for SafetyBUS p

Max. output voltage

230V

Max. output at quadratic load at rated output voltage

3kW

Supporting protocol for PROFINET IO

Supporting protocol for BACnet

Degree of protection (IP)

IP20

Mains voltage

200 .. 240V

Number of phases output

3

Number of phases input

3

Max. output at linear load at rated output voltage

3kW

Nominal output current I2N

12.2A
