Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital inputs4
With control elementYes
Height143mm
Number of digital outputs1
Supporting protocol for LONNo
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Number of analogue inputs1
Depth102.2mm
Number of HW-interfaces RS-2320
Number of HW-interfaces other8
Number of analogue outputs1
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet0
Width72mm
Supporting protocol for PROFIBUSNo
Supporting protocol for KNXNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Supporting protocol for INTERBUSNo
With optical interfaceNo
Supporting protocol for Data-HighwayNo
With PC connectionYes
Supporting protocol for SERCOSNo
Supporting protocol for other bus systemsNo
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SUCONETNo
Mains voltage200 - 240V
Supporting protocol for DeviceNetNo
Number of interfaces PROFINET0
4-quadrant operation possibleNo
Number of phases input3
Integrated breaking resistanceNo
Type of converterU converter
Application in industrial area permittedYes
Number of phases output3
Mains frequency50/60 Hz
Relative symmetric net voltage tolerance10%
Max. output frequency400Hz
Max. output at linear load at rated output voltage0.37kW
Application in domestic- and commercial area permittedYes
Supporting protocol for DeviceNet SafetyNo
Max. output at quadratic load at rated output voltage0.37kW
Relative symmetric net frequency tolerance5%
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Nominal output current I2N2.4A
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Supporting protocol for EtherNet/IPNo
Max. output voltage230V
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

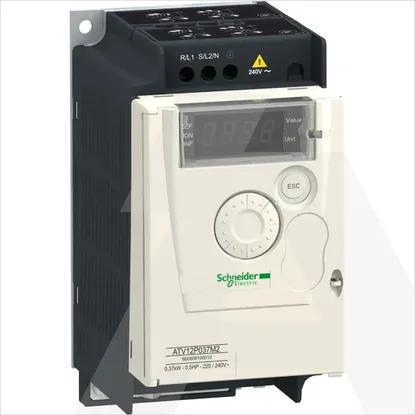

ATV12P037M3 | Pretvarac Frek. ATV12 0,37 KW Ploca
