Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width72mm
Depth102.2mm
Number of HW-interfaces industrial Ethernet0
Number of digital outputs1
Supporting protocol for LONNo
Number of analogue outputs1
Number of HW-interfaces RS-2320
Height143mm
Number of digital inputs4
With control elementYes
Number of analogue inputs1
Number of HW-interfaces RS-4220
Supporting protocol for ASINo
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4851
With optical interfaceNo
Number of HW-interfaces parallel0
Number of HW-interfaces other8
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Supporting protocol for TCP/IPNo
Number of HW-interfaces USB0
Supporting protocol for INTERBUSNo
Supporting protocol for other bus systemsNo
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetNo
With PC connectionYes
Degree of protection (IP)IP20
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Number of interfaces PROFINET0
Supporting protocol for SERCOSNo
Mains voltage200 - 240V
Mains frequency50/60 Hz
4-quadrant operation possibleNo
Supporting protocol for INTERBUS-SafetyNo
Application in domestic- and commercial area permittedYes
Number of phases output3
Integrated breaking resistanceNo
Number of phases input1
Type of converterU converter
Application in industrial area permittedYes
Max. output at linear load at rated output voltage0.75kW
Max. output at quadratic load at rated output voltage0.75kW
Max. output frequency400Hz
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET CBANo
Relative symmetric net voltage tolerance10%
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Relative symmetric net frequency tolerance5%
Supporting protocol for PROFIsafeNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Max. output voltage230V
Supporting protocol for BACnetNo
Nominal output current I2N4.2A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

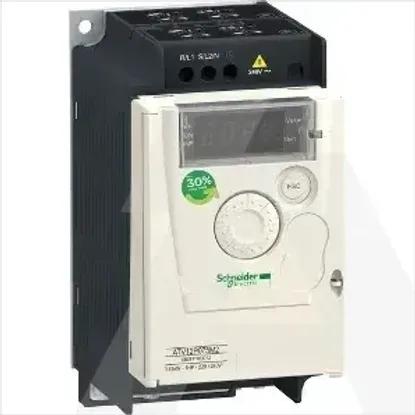

ATV12P075M2 | Pretvarac Frek. ATV12 0,75 KW Ploca
