Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Height184mm
With control elementYes
Depth100.2mm
Number of digital inputs4
Width140mm
Number of digital outputs1
Number of analogue inputs1
With PC connectionYes
Supporting protocol for KNXNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Supporting protocol for ASINo
Number of HW-interfaces serial TTY0
Supporting protocol for PROFIBUSNo
Degree of protection (IP)IP20
Number of HW-interfaces other8
Number of analogue outputs1
Supporting protocol for LONNo
With optical interfaceNo
Number of HW-interfaces industrial Ethernet0
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusYes
Number of HW-interfaces RS-4220
Supporting protocol for SERCOSNo
Number of HW-interfaces RS-4851
Number of HW-interfaces parallel0
Supporting protocol for INTERBUSNo
Supporting protocol for other bus systemsNo
Number of HW-interfaces RS-2320
Number of HW-interfaces USB0
Number of phases output3
Mains voltage200 - 240V
Supporting protocol for INTERBUS-SafetyNo
Relative symmetric net voltage tolerance10%
Supporting protocol for PROFINET IONo
Max. output at quadratic load at rated output voltage3kW
Mains frequency50/60 Hz
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Max. output frequency400Hz
Supporting protocol for EtherNet/IPNo
Type of converterU converter
Supporting protocol for PROFINET CBANo
4-quadrant operation possibleNo
Relative symmetric net frequency tolerance5%
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Number of phases input3
Integrated breaking resistanceNo
Max. output at linear load at rated output voltage3kW
Number of interfaces PROFINET0
Max. output voltage230V
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for BACnetNo
Nominal output current I2N12.2A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

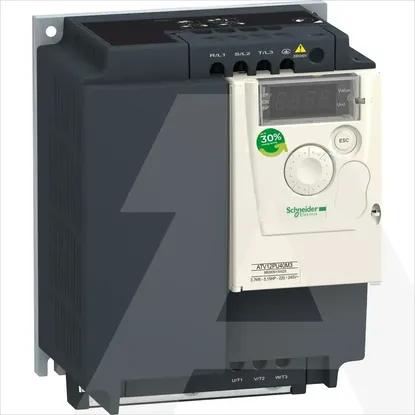

ATV12PU30M3 | Pretvarac Frek. ATV12 3 KW Ploca
