Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Depth150mm
Height143mm
Width107mm
Number of digital outputs0
Number of analogue outputs1
With control elementYes
Supporting protocol for LONYes
Number of analogue inputs2
Number of HW-interfaces USB0
Supporting protocol for KNXNo
Number of HW-interfaces RS-4220
Number of HW-interfaces other0
Supporting protocol for TCP/IPNo
Number of HW-interfaces RS-4851
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SUCONETNo
Number of digital inputs3
Supporting protocol for INTERBUSNo
Supporting protocol for CANNo
Number of HW-interfaces serial TTY0
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
With optical interfaceNo
Supporting protocol for DeviceNetNo
Supporting protocol for PROFIBUSNo
Number of HW-interfaces RS-2320
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Supporting protocol for INTERBUS-SafetyNo
Application in domestic- and commercial area permittedYes
With PC connectionYes
Number of interfaces PROFINET0
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Max. output frequency200Hz
Type of converterU converter
Max. output at quadratic load at rated output voltage0.75kW
4-quadrant operation possibleNo
Relative symmetric net voltage tolerance10%
Integrated breaking resistanceNo
Application in industrial area permittedYes
Supporting protocol for other bus systemsYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Supporting protocol for SafetyBUS pNo
Max. output voltage480V
Degree of protection (IP)IP21
Mains voltage380 - 480V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage0.75kW
Nominal output current I2N2.2A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

ATV212H075N4 | Pretvarac Frek. 0,75 KW 480 V 3P

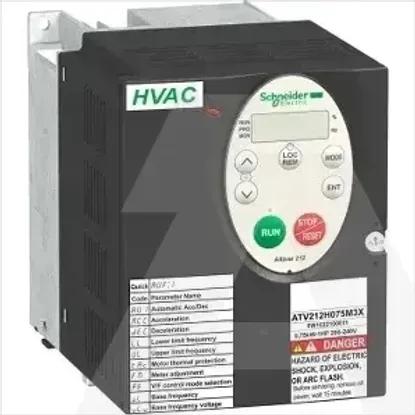

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • SCHNEIDER

Technical specifications

Depth

150mm

Height

143mm

Width

107mm

Number of digital outputs

0

Number of analogue outputs

1

With control element

Supporting protocol for LON

Number of analogue inputs

2

Number of HW-interfaces USB

0

Supporting protocol for KNX

Number of HW-interfaces RS-422

0

Number of HW-interfaces other

0

Supporting protocol for TCP/IP

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

0

Supporting protocol for SUCONET

Number of digital inputs

3

Supporting protocol for INTERBUS

Supporting protocol for CAN

Number of HW-interfaces serial TTY

0

Supporting protocol for Modbus

Supporting protocol for Data-Highway

With optical interface

Supporting protocol for DeviceNet

Supporting protocol for PROFIBUS

Number of HW-interfaces RS-232

0

Number of HW-interfaces parallel

0

Supporting protocol for ASI

Supporting protocol for INTERBUS-Safety

Application in domestic- and commercial area permitted

With PC connection

Number of interfaces PROFINET

0

Supporting protocol for SERCOS

Mains frequency

50/60 Hz

Max. output frequency

200Hz

Type of converter

U converter

Max. output at quadratic load at rated output voltage

0.75kW

4-quadrant operation possible

Relative symmetric net voltage tolerance

10%

Integrated breaking resistance

Application in industrial area permitted

Supporting protocol for other bus systems

Supporting protocol for AS-Interface Safety at Work

Supporting protocol for DeviceNet Safety

Supporting protocol for EtherNet/IP

Supporting protocol for PROFINET CBA

Relative symmetric net frequency tolerance

5%

Supporting protocol for Foundation Fieldbus

Supporting protocol for PROFINET IO

Supporting protocol for PROFIsafe

Supporting protocol for BACnet

Supporting protocol for SafetyBUS p

Max. output voltage

480V

Degree of protection (IP)

IP21

Mains voltage

380 .. 480V

Number of phases output

3

Number of phases input

3

Max. output at linear load at rated output voltage

0.75kW

Nominal output current I2N

2.2A
