Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital inputs3
Height232mm
With control elementYes
Depth170mm
Number of digital outputs0
Width180mm
Number of HW-interfaces RS-2320
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Number of HW-interfaces USB0
Supporting protocol for LONYes
Number of HW-interfaces industrial Ethernet0
Number of analogue inputs2
With optical interfaceNo
Number of analogue outputs1
Supporting protocol for TCP/IPNo
Number of HW-interfaces RS-4851
Number of HW-interfaces other0
Number of HW-interfaces RS-4220
Degree of protection (IP)IP21
Supporting protocol for KNXNo
Supporting protocol for other bus systemsYes
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ASINo
Supporting protocol for CANNo
With PC connectionYes
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Application in domestic- and commercial area permittedYes
Application in industrial area permittedYes
4-quadrant operation possibleNo
Mains frequency50/60 Hz
Number of phases input3
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Type of converterU converter
Max. output at linear load at rated output voltage11kW
Number of phases output3
Integrated breaking resistanceNo
Mains voltage380 - 480V
Number of interfaces PROFINET0
Max. output frequency200Hz
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Max. output at quadratic load at rated output voltage11kW
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Nominal output current I2N22.5A
Supporting protocol for BACnetNo
Max. output voltage480V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

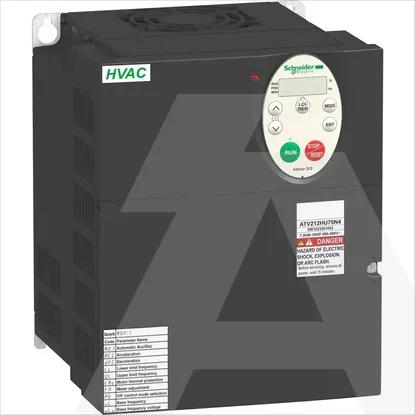

ATV212HD11N4 | Pretvarac Frek. 11 KW 480 V 3P
