Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth214mm
Width240mm
With control elementYes
Number of digital outputs0
Number of analogue inputs2
Height420mm
Number of digital inputs3
Supporting protocol for KNXNo
Number of HW-interfaces industrial Ethernet0
Number of analogue outputs1
Supporting protocol for TCP/IPNo
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
Supporting protocol for CANNo
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Number of HW-interfaces other0
Number of HW-interfaces USB0
Supporting protocol for Data-HighwayNo
Supporting protocol for LONYes
Number of HW-interfaces RS-4220
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4851
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsYes
Degree of protection (IP)IP21
Supporting protocol for SERCOSNo
Supporting protocol for PROFIBUSNo
Number of HW-interfaces RS-2320
With PC connectionYes
With optical interfaceNo
Type of converterU converter
Mains frequency50/60 Hz
Supporting protocol for INTERBUS-SafetyNo
Max. output at quadratic load at rated output voltage22kW
Max. output voltage480V
Max. output at linear load at rated output voltage22kW
Mains voltage380 - 480V
Number of phases output3
Max. output frequency200Hz
Relative symmetric net frequency tolerance5%
Application in industrial area permittedYes
Supporting protocol for AS-Interface Safety at WorkNo
Number of interfaces PROFINET0
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPNo
Application in domestic- and commercial area permittedYes
4-quadrant operation possibleNo
Supporting protocol for PROFIsafeNo
Integrated breaking resistanceNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Relative symmetric net voltage tolerance10%
Supporting protocol for SafetyBUS pNo
Number of phases input3
Supporting protocol for BACnetNo
Nominal output current I2N43.5A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

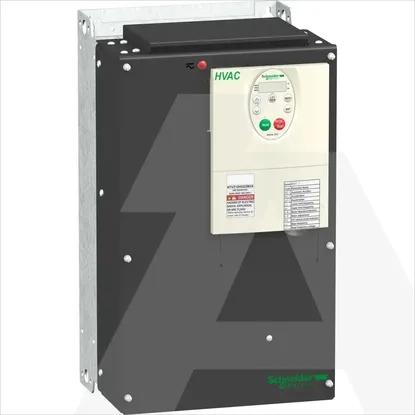

ATV212HD22N4 | Pretvarac Frek. 22 KW 480 V 3P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Frequency converter =< 1 kV
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Depth
214mm
Width
240mm
With control element
Number of digital outputs
0
Number of analogue inputs
2
Height
420mm
Number of digital inputs
3
Supporting protocol for KNX
Number of HW-interfaces industrial Ethernet
0
Number of analogue outputs
1
Supporting protocol for TCP/IP
Number of HW-interfaces serial TTY
0
Supporting protocol for INTERBUS
Supporting protocol for Modbus
Supporting protocol for CAN
Supporting protocol for ASI
Supporting protocol for SUCONET
Number of HW-interfaces other
0
Number of HW-interfaces USB
0
Supporting protocol for Data-Highway
Supporting protocol for LON
Number of HW-interfaces RS-422
0
Number of HW-interfaces parallel
0
Number of HW-interfaces RS-485
1
Supporting protocol for DeviceNet
Supporting protocol for other bus systems
Degree of protection (IP)
IP21
Supporting protocol for SERCOS
Supporting protocol for PROFIBUS
Number of HW-interfaces RS-232
0
With PC connection
With optical interface
Type of converter
U converter
Mains frequency
50/60 Hz
Supporting protocol for INTERBUS-Safety
Max. output at quadratic load at rated output voltage
22kW
Max. output voltage
480V
Max. output at linear load at rated output voltage
22kW
Mains voltage
380 .. 480V
Number of phases output
3
Max. output frequency
200Hz
Relative symmetric net frequency tolerance
5%
Application in industrial area permitted
Supporting protocol for AS-Interface Safety at Work
Number of interfaces PROFINET
0
Supporting protocol for Foundation Fieldbus
Supporting protocol for EtherNet/IP
Application in domestic- and commercial area permitted
4-quadrant operation possible
Supporting protocol for PROFIsafe
Integrated breaking resistance
Supporting protocol for DeviceNet Safety
Supporting protocol for PROFINET CBA
Supporting protocol for PROFINET IO
Relative symmetric net voltage tolerance
10%
Supporting protocol for SafetyBUS p
Number of phases input
3
Supporting protocol for BACnet
Nominal output current I2N
43.5A
