Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
With optical interfaceNo
Depth244mm
Number of analogue outputs1
Number of digital outputs0
Number of HW-interfaces other0
Number of digital inputs3
Number of HW-interfaces RS-2320
Supporting protocol for PROFIBUSNo
With control elementYes
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Number of HW-interfaces RS-4851
Height550mm
Number of HW-interfaces industrial Ethernet0
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Supporting protocol for LONYes
Number of analogue inputs2
Width240mm
Supporting protocol for SUCONETNo
Max. output at quadratic load at rated output voltage37kW
Supporting protocol for KNXNo
4-quadrant operation possibleNo
Supporting protocol for INTERBUSNo
Supporting protocol for other bus systemsYes
Supporting protocol for DeviceNetNo
Mains voltage380 - 480V
Supporting protocol for INTERBUS-SafetyNo
Application in industrial area permittedYes
Mains frequency50/60 Hz
Application in domestic- and commercial area permittedYes
Number of interfaces PROFINET0
Number of phases input3
Max. output frequency200Hz
Max. output at linear load at rated output voltage37kW
Supporting protocol for SERCOSNo
Degree of protection (IP)IP21
Number of phases output3
Type of converterU converter
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Integrated breaking resistanceNo
With PC connectionYes
Supporting protocol for CANNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Max. output voltage480V
Supporting protocol for SafetyBUS pNo
Relative symmetric net voltage tolerance10%
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Supporting protocol for BACnetNo
Nominal output current I2N79A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

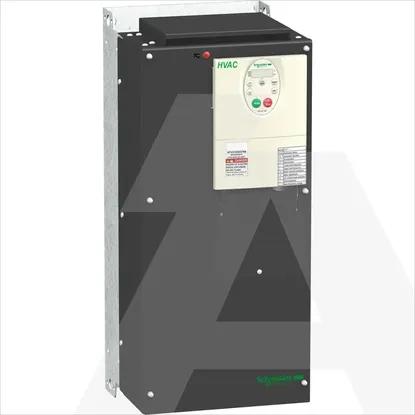

ATV212HD37N4 | Pretvarac Frek. 37KW 480V 3P
