Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of HW-interfaces RS-4851
With optical interfaceNo
Number of analogue outputs1
Depth150mm
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Number of digital outputs0
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Height143mm
Number of digital inputs3
Supporting protocol for LONYes
Number of HW-interfaces USB0
Supporting protocol for TCP/IPNo
Number of HW-interfaces other0
Number of analogue inputs2
With control elementYes
Number of HW-interfaces parallel0
Width107mm
Supporting protocol for ASINo
Supporting protocol for CANNo
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Degree of protection (IP)IP21
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Application in domestic- and commercial area permittedYes
Supporting protocol for INTERBUS-SafetyNo
Number of phases output3
Max. output frequency200Hz
4-quadrant operation possibleNo
Type of converterU converter
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Integrated breaking resistanceNo
Number of interfaces PROFINET0
Mains frequency50/60 Hz
Number of phases input3
Application in industrial area permittedYes
Mains voltage380 - 480V
Supporting protocol for SUCONETNo
Supporting protocol for SERCOSNo
Supporting protocol for other bus systemsYes
With PC connectionYes
Max. output at quadratic load at rated output voltage2.2kW
Relative symmetric net voltage tolerance10%
Max. output at linear load at rated output voltage2.2kW
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Relative symmetric net frequency tolerance5%
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET IONo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Max. output voltage480V
Supporting protocol for BACnetNo
Nominal output current I2N5.1A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

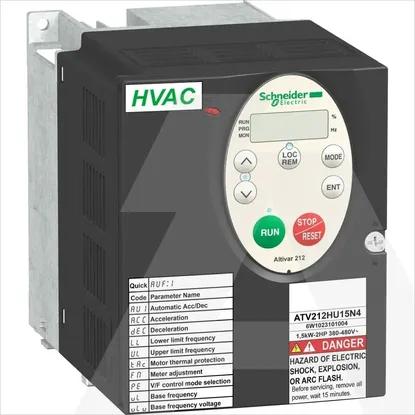

ATV212HU22N4 | Pretvarac Frek. 2,2 KW 480 V 3P
