Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width142mm
Number of digital inputs3
Supporting protocol for LONYes
Number of analogue outputs1
Number of digital outputs0
Height184mm
Number of analogue inputs2
Depth150mm
With control elementYes
Supporting protocol for INTERBUSNo
Supporting protocol for CANNo
Supporting protocol for ModbusYes
Number of HW-interfaces serial TTY0
Supporting protocol for TCP/IPNo
Number of HW-interfaces RS-2320
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Supporting protocol for ASINo
Supporting protocol for other bus systemsYes
Supporting protocol for DeviceNetNo
Number of HW-interfaces other0
Supporting protocol for PROFIBUSNo
With optical interfaceNo
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SUCONETNo
Number of HW-interfaces RS-4851
Supporting protocol for SERCOSNo
Degree of protection (IP)IP21
Supporting protocol for INTERBUS-SafetyNo
Mains voltage380 - 480V
With PC connectionYes
Number of interfaces PROFINET0
Number of phases output3
4-quadrant operation possibleNo
Max. output at linear load at rated output voltage3kW
Max. output at quadratic load at rated output voltage3kW
Relative symmetric net frequency tolerance5%
Number of phases input3
Supporting protocol for Foundation FieldbusNo
Max. output frequency200Hz
Mains frequency50/60 Hz
Relative symmetric net voltage tolerance10%
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Type of converterU converter
Supporting protocol for EtherNet/IPNo
Application in industrial area permittedYes
Integrated breaking resistanceNo
Application in domestic- and commercial area permittedYes
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Max. output voltage480V
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Nominal output current I2N7.2A
Supporting protocol for PROFIsafeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

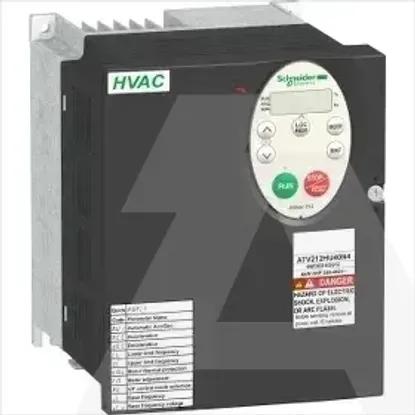

ATV212HU30N4 | Pretvarac Frek. 3 KW 480 V 3P
