Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Supporting protocol for INTERBUSNo
Supporting protocol for LONYes
Height297mm
Supporting protocol for ASINo
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4851
Number of HW-interfaces RS-2320
Supporting protocol for ModbusYes
Supporting protocol for PROFIBUSNo
Width215mm
With optical interfaceNo
With control elementYes
Number of HW-interfaces RS-4220
Number of analogue inputs2
Number of HW-interfaces other0
Supporting protocol for CANNo
Supporting protocol for TCP/IPNo
Number of HW-interfaces parallel0
Depth192mm
Supporting protocol for KNXNo
Number of digital inputs3
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces USB0
Number of analogue outputs1
Number of digital outputs0
Number of phases output3
Supporting protocol for SUCONETNo
Integrated breaking resistanceNo
Supporting protocol for other bus systemsYes
Supporting protocol for DeviceNetNo
Supporting protocol for SERCOSNo
Max. output at linear load at rated output voltage0.75kW
Application in industrial area permittedYes
Relative symmetric net frequency tolerance5%
Degree of protection (IP)IP55
Application in domestic- and commercial area permittedYes
Relative symmetric net voltage tolerance10%
With PC connectionYes
Supporting protocol for Data-HighwayNo
Mains frequency50/60 Hz
Type of converterU converter
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Max. output at quadratic load at rated output voltage0.75kW
Number of interfaces PROFINET0
Number of phases input3
4-quadrant operation possibleNo
Mains voltage380 - 480V
Max. output frequency200Hz
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Max. output voltage480V
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFIsafeNo
Nominal output current I2N2.2A
Supporting protocol for Foundation FieldbusNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

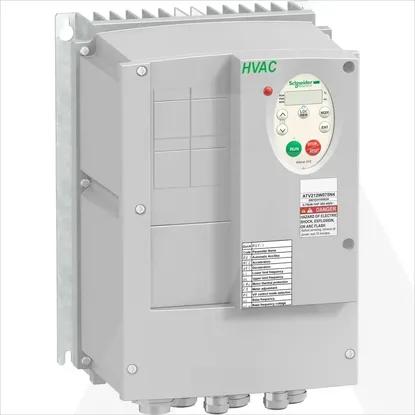

ATV212W075N4 | Pretvarac Frek. 0,75 KW 480V 3P IP54
