Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth315mm
Width284mm
Height720mm
With control elementYes
Number of digital inputs3
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs0
Number of HW-interfaces RS-4851
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces USB0
Number of HW-interfaces RS-2320
With optical interfaceNo
Number of HW-interfaces other0
Supporting protocol for CANNo
Supporting protocol for DeviceNetNo
Number of HW-interfaces parallel0
Number of HW-interfaces serial TTY0
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSNo
Supporting protocol for LONYes
Supporting protocol for ModbusYes
Supporting protocol for SUCONETNo
With PC connectionYes
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for other bus systemsYes
Degree of protection (IP)IP55
Number of phases output3
Number of phases input3
Type of converterU converter
Supporting protocol for DeviceNet SafetyNo
Mains frequency50/60 Hz
4-quadrant operation possibleNo
Supporting protocol for PROFINET CBANo
Number of interfaces PROFINET0
Integrated breaking resistanceNo
Relative symmetric net voltage tolerance10%
Supporting protocol for PROFINET IONo
Mains voltage380 - 480V
Max. output at quadratic load at rated output voltage22kW
Max. output at linear load at rated output voltage22kW
Application in domestic- and commercial area permittedYes
Supporting protocol for EtherNet/IPNo
Relative symmetric net frequency tolerance5%
Max. output frequency200Hz
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Application in industrial area permittedYes
Supporting protocol for SafetyBUS pNo
Max. output voltage480V
Nominal output current I2N43.5A
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

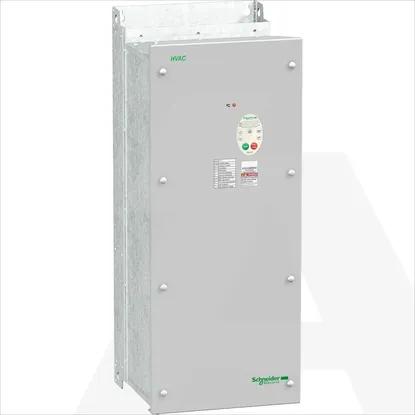

ATV212WD22N4C | Pretvarac Frek. 22KW 480V 3P EMC B IP54
