Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of analogue outputs1
Width284mm
Height880mm
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Number of digital inputs3
Supporting protocol for LONYes
Number of digital outputs0
With optical interfaceNo
Number of analogue inputs2
Supporting protocol for TCP/IPNo
Number of HW-interfaces USB0
With control elementYes
Number of HW-interfaces RS-4851
Depth343mm
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-2320
Number of HW-interfaces parallel0
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Supporting protocol for ASINo
Supporting protocol for DeviceNetNo
Degree of protection (IP)IP55
Supporting protocol for Data-HighwayNo
4-quadrant operation possibleNo
Application in industrial area permittedYes
With PC connectionYes
Max. output frequency200Hz
Max. output at linear load at rated output voltage45kW
Max. output at quadratic load at rated output voltage45kW
Supporting protocol for KNXNo
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Type of converterU converter
Application in domestic- and commercial area permittedYes
Number of phases input3
Supporting protocol for INTERBUS-SafetyNo
Number of phases output3
Relative symmetric net voltage tolerance10%
Mains voltage380 - 480V
Integrated breaking resistanceNo
Supporting protocol for other bus systemsYes
Number of interfaces PROFINET0
Supporting protocol for ModbusYes
Supporting protocol for SUCONETNo
Relative symmetric net frequency tolerance5%
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Nominal output current I2N94A
Max. output voltage480V
Supporting protocol for BACnetNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET IONo
Supporting protocol for EtherNet/IPNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

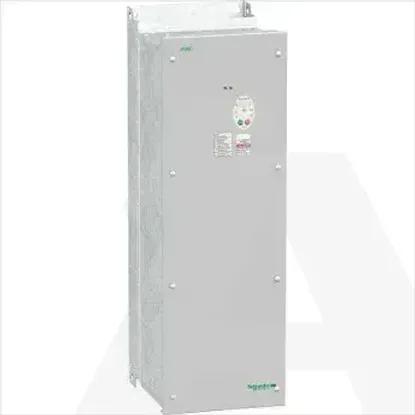

ATV212WD45N4 | Pretvarac Frek. 45KW 480V 3P EMC a IP54
