Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width171mm
Height409mm
Depth233mm
Supporting protocol for CANNo
Number of HW-interfaces industrial Ethernet1
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
Number of HW-interfaces RS-2320
Supporting protocol for KNXNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces parallel0
Number of analogue outputs2
Number of digital inputs6
Number of HW-interfaces serial TTY0
With control elementYes
With optical interfaceYes
Supporting protocol for PROFIBUSYes
Supporting protocol for ASINo
Number of HW-interfaces RS-4220
Number of HW-interfaces other0
Number of analogue inputs3
Number of HW-interfaces USB0
Number of HW-interfaces RS-4851
Supporting protocol for LONNo
Number of digital outputs0
Supporting protocol for DeviceNetYes
Supporting protocol for DeviceNet SafetyNo
Relative symmetric net frequency tolerance5%
Supporting protocol for SUCONETNo
Number of interfaces PROFINET0
Degree of protection (IP)IP21
Mains voltage380 - 480V
Max. output at quadratic load at rated output voltage11kW
Mains frequency50/60 Hz
Number of phases output3
Supporting protocol for other bus systemsNo
With PC connectionNo
Max. output frequency500Hz
Max. output at linear load at rated output voltage11kW
Supporting protocol for SERCOSNo
Relative symmetric net voltage tolerance10%
Supporting protocol for AS-Interface Safety at WorkNo
Application in domestic- and commercial area permittedYes
Number of phases input3
Application in industrial area permittedYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for EtherNet/IPYes
Type of converterU converter
Integrated breaking resistanceNo
4-quadrant operation possibleYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
Max. output voltage480V
Supporting protocol for BACnetNo
Nominal output current I2N23.5A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

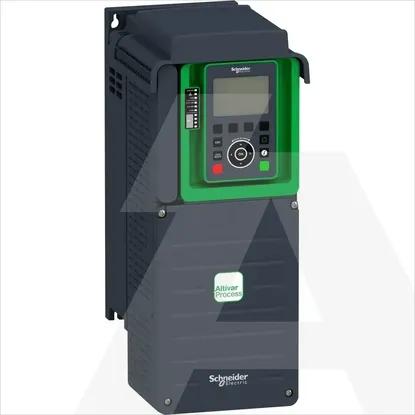

ATV630D11N4 | Frekventni Pret. IP21 11KW 400V/480V
