Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of HW-interfaces RS-4851
Height673mm
With control elementYes
Number of digital inputs6
Depth271mm
Number of digital outputs0
Number of analogue outputs2
Number of HW-interfaces RS-2320
Supporting protocol for LONNo
Width226mm
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet1
Number of analogue inputs3
Number of HW-interfaces other0
Supporting protocol for ASINo
With optical interfaceNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces parallel0
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSYes
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
Supporting protocol for CANNo
Degree of protection (IP)IP21
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Supporting protocol for INTERBUS-SafetyNo
Max. output frequency500Hz
Integrated breaking resistanceNo
Application in domestic- and commercial area permittedYes
Mains voltage200 - 240V
Type of converterU converter
Max. output at linear load at rated output voltage22kW
Number of phases output3
With PC connectionNo
Number of interfaces PROFINET0
4-quadrant operation possibleYes
Application in industrial area permittedYes
Number of phases input3
Supporting protocol for other bus systemsNo
Max. output at quadratic load at rated output voltage22kW
Relative symmetric net voltage tolerance10%
Max. output voltage240V
Supporting protocol for BACnetNo
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Nominal output current I2N92.6A
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Supporting protocol for DeviceNet SafetyNo
Relative symmetric net frequency tolerance5%
Supporting protocol for SafetyBUS pNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

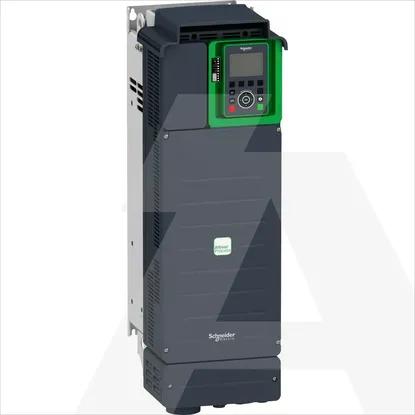

ATV630D22M3 | Frekventni Pret. IP21 22KW 200V/240V
