Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital inputs6
Height546mm
Number of analogue outputs2
Number of analogue inputs3
Supporting protocol for LONNo
Depth232mm
Number of HW-interfaces USB0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4851
Width211mm
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
With control elementYes
Number of digital outputs0
Number of HW-interfaces industrial Ethernet1
With optical interfaceYes
Number of HW-interfaces parallel0
Number of HW-interfaces other0
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Supporting protocol for PROFIBUSYes
Supporting protocol for INTERBUSNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for CANNo
Degree of protection (IP)IP21
Mains frequency50/60 Hz
Supporting protocol for SERCOSNo
Supporting protocol for KNXNo
Supporting protocol for TCP/IPYes
With PC connectionNo
Number of interfaces PROFINET0
Number of phases input3
Supporting protocol for DeviceNetYes
Supporting protocol for ModbusYes
Type of converterU converter
Supporting protocol for Data-HighwayNo
Supporting protocol for other bus systemsNo
4-quadrant operation possibleYes
Mains voltage380 - 480V
Number of phases output3
Application in domestic- and commercial area permittedYes
Integrated breaking resistanceNo
Application in industrial area permittedYes
Max. output at linear load at rated output voltage22kW
Max. output at quadratic load at rated output voltage22kW
Relative symmetric net frequency tolerance5%
Max. output frequency500Hz
Relative symmetric net voltage tolerance10%
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Max. output voltage480V
Supporting protocol for EtherNet/IPYes
Nominal output current I2N46.3A
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Supporting protocol for DeviceNet SafetyNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

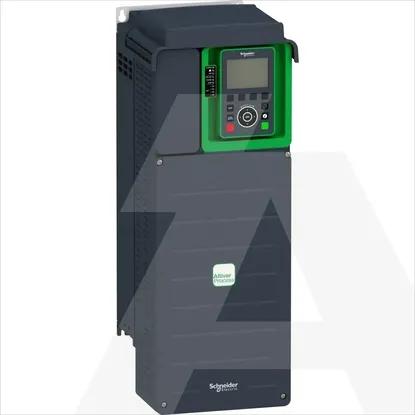

ATV630D22N4 | Frekventni Pret. IP21 22KW 400V/480V
