Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Height922mm
With control elementYes
Depth323mm
Width290mm
Supporting protocol for CANNo
Number of HW-interfaces USB0
With optical interfaceNo
Number of digital outputs0
Supporting protocol for other bus systemsNo
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4220
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Number of HW-interfaces RS-4851
Supporting protocol for DeviceNetYes
Supporting protocol for INTERBUSNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces other0
Supporting protocol for Data-HighwayNo
Supporting protocol for PROFIBUSYes
Number of analogue outputs2
Supporting protocol for KNXNo
Number of digital inputs6
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Number of analogue inputs3
Supporting protocol for LONNo
Supporting protocol for SUCONETNo
With PC connectionNo
Type of converterU converter
Application in industrial area permittedYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET IOYes
Max. output frequency500Hz
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for PROFINET CBANo
Mains frequency50/60 Hz
Relative symmetric net frequency tolerance5%
Supporting protocol for EtherNet/IPYes
Relative symmetric net voltage tolerance10%
Application in domestic- and commercial area permittedYes
Number of interfaces PROFINET0
Max. output at quadratic load at rated output voltage37kW
Integrated breaking resistanceNo
4-quadrant operation possibleYes
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Max. output voltage240V
Degree of protection (IP)IP21
Mains voltage200 - 240V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage37kW
Nominal output current I2N149A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

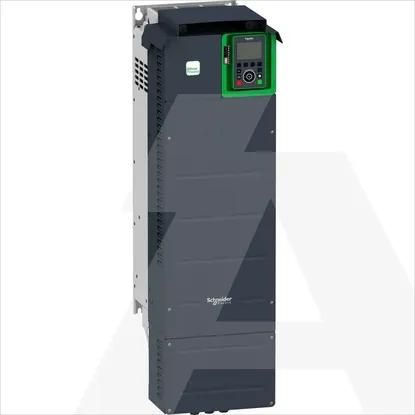

ATV630D37M3 | Frekventni Pret. IP21 37KW 200V/240V
