Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Supporting protocol for LONNo
Number of HW-interfaces parallel0
Width320mm
Supporting protocol for INTERBUSNo
With control elementYes
Number of analogue inputs3
Number of digital inputs6
Number of analogue outputs2
Number of HW-interfaces RS-2320
Number of digital outputs0
Number of HW-interfaces serial TTY0
Supporting protocol for ASINo
Number of HW-interfaces RS-4220
Supporting protocol for CANNo
Number of HW-interfaces USB0
Supporting protocol for TCP/IPYes
Height852mm
Supporting protocol for PROFIBUSYes
Depth390mm
Number of HW-interfaces other0
Supporting protocol for KNXNo
With optical interfaceNo
Number of HW-interfaces industrial Ethernet1
Supporting protocol for ModbusYes
Number of HW-interfaces RS-4851
Degree of protection (IP)IP21
Number of phases input3
Mains frequency50/60 Hz
With PC connectionNo
Supporting protocol for other bus systemsNo
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUS-SafetyNo
Integrated breaking resistanceNo
Number of interfaces PROFINET0
Mains voltage200 - 240V
Supporting protocol for SERCOSNo
Type of converterU converter
Supporting protocol for DeviceNetYes
4-quadrant operation possibleYes
Number of phases output3
Supporting protocol for Data-HighwayNo
Application in industrial area permittedYes
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Supporting protocol for AS-Interface Safety at WorkNo
Max. output at linear load at rated output voltage55kW
Application in domestic- and commercial area permittedYes
Supporting protocol for DeviceNet SafetyNo
Max. output frequency500Hz
Max. output at quadratic load at rated output voltage55kW
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Max. output voltage240V
Supporting protocol for EtherNet/IPYes
Supporting protocol for BACnetNo
Supporting protocol for PROFINET CBANo
Nominal output current I2N211A
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

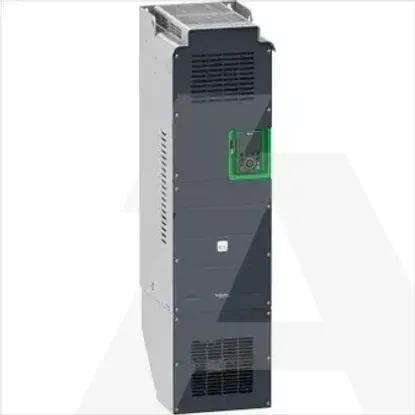

ATV630D55M3 | Frekventni Pret. IP21 55KW 200V/240V
