Details
- •Low-voltage switchgear and control gear (automation)
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width264mm
Height678mm
Depth330mm
With control elementYes
Number of digital inputs6
Number of digital outputs0
Number of analogue inputs3
Number of analogue outputs2
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Number of HW-interfaces other0
With optical interfaceNo
Supporting protocol for TCP/IPYes
Supporting protocol for ASINo
Supporting protocol for PROFIBUSYes
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetYes
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
Degree of protection (IP)IP55
With PC connectionNo
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Mains voltage380 - 480V
Mains frequency50/60 Hz
4-quadrant operation possibleYes
Number of interfaces PROFINET0
Type of converterU converter
Number of phases output3
Number of phases input3
Integrated breaking resistanceNo
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Max. output frequency500Hz
Max. output at linear load at rated output voltage11kW
Max. output at quadratic load at rated output voltage11kW
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Max. output voltage480V
Nominal output current I2N23.5A
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

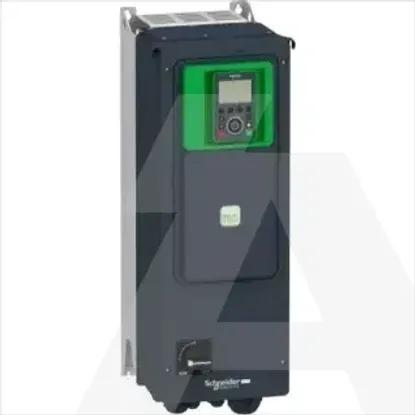

ATV650D11N4E | Frekventni Pret. IP55 11KW 400V/480V
