Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital inputs6
Depth401mm
With control elementYes
Height910mm
Width290mm
Number of analogue outputs2
Number of analogue inputs3
Number of digital outputs0
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Supporting protocol for TCP/IPYes
With optical interfaceNo
Supporting protocol for PROFIBUSYes
Supporting protocol for CANNo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for other bus systemsNo
Supporting protocol for SUCONETNo
Supporting protocol for ModbusYes
Degree of protection (IP)IP55
Number of HW-interfaces RS-2320
Supporting protocol for SERCOSNo
4-quadrant operation possibleYes
Mains frequency50/60 Hz
Number of interfaces PROFINET0
Mains voltage380 - 480V
Number of phases output3
Type of converterU converter
Supporting protocol for INTERBUS-SafetyNo
Max. output frequency500Hz
Relative symmetric net voltage tolerance10%
Application in industrial area permittedYes
Supporting protocol for AS-Interface Safety at WorkNo
Application in domestic- and commercial area permittedYes
Integrated breaking resistanceNo
Max. output at linear load at rated output voltage45kW
Max. output at quadratic load at rated output voltage45kW
Relative symmetric net frequency tolerance5%
Number of phases input3
Supporting protocol for PROFIsafeNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IOYes
With PC connectionNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Max. output voltage480V
Supporting protocol for BACnetNo
Supporting protocol for SafetyBUS pNo
Nominal output current I2N87A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

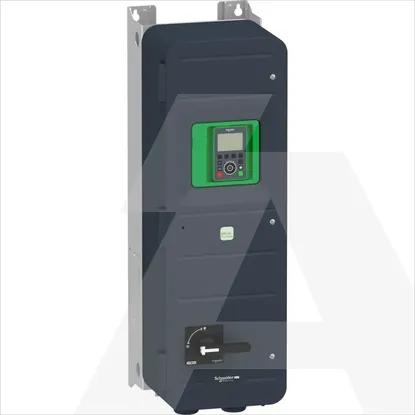

ATV650D45N4E | Frekventni Pret. IP55 45KW 400V/480V
