Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

With control elementYes
Height1250mm
Width345mm
Number of analogue inputs3
Number of digital inputs6
Number of digital outputs0
Depth436mm
Number of analogue outputs2
Number of HW-interfaces industrial Ethernet1
Supporting protocol for INTERBUSNo
Supporting protocol for LONNo
Supporting protocol for TCP/IPYes
Supporting protocol for PROFIBUSYes
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetYes
Supporting protocol for KNXNo
Number of HW-interfaces RS-4220
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4851
Supporting protocol for CANNo
Supporting protocol for ASINo
Number of HW-interfaces USB0
With optical interfaceNo
Supporting protocol for ModbusYes
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
Number of HW-interfaces RS-2320
Supporting protocol for SERCOSNo
With PC connectionNo
Supporting protocol for INTERBUS-SafetyNo
4-quadrant operation possibleYes
Mains frequency50/60 Hz
Number of interfaces PROFINET0
Type of converterU converter
Application in industrial area permittedYes
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Supporting protocol for AS-Interface Safety at WorkNo
Application in domestic- and commercial area permittedYes
Integrated breaking resistanceNo
Max. output voltage480V
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Max. output at quadratic load at rated output voltage55kW
Supporting protocol for Foundation FieldbusNo
Max. output frequency500Hz
Supporting protocol for BACnetNo
Degree of protection (IP)IP55
Mains voltage380 - 480V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage55kW
Nominal output current I2N106A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

ATV650D55N4E | Frekventni Pret. IP55 55KW 400V/480V

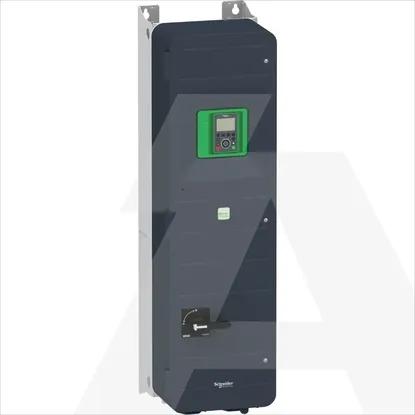

Main Product Image
