Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital inputs6
With control elementYes
Width345mm
Height1250mm
Depth375mm
Number of digital outputs0
Number of HW-interfaces serial TTY0
Number of analogue outputs2
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of analogue inputs3
Number of HW-interfaces RS-4851
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet1
Supporting protocol for LONNo
Number of HW-interfaces USB0
Supporting protocol for KNXNo
Supporting protocol for CANNo
Supporting protocol for TCP/IPYes
Supporting protocol for INTERBUSNo
With optical interfaceNo
Supporting protocol for PROFIBUSYes
Number of HW-interfaces other0
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
With PC connectionNo
Degree of protection (IP)IP55
Mains frequency50/60 Hz
Number of interfaces PROFINET0
4-quadrant operation possibleYes
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Mains voltage380 - 480V
Application in industrial area permittedYes
Number of phases output3
Integrated breaking resistanceNo
Type of converterU converter
Max. output frequency500Hz
Max. output at linear load at rated output voltage75kW
Number of phases input3
Max. output at quadratic load at rated output voltage75kW
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Application in domestic- and commercial area permittedYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for BACnetNo
Max. output voltage480V
Nominal output current I2N145A
Supporting protocol for SafetyBUS pNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

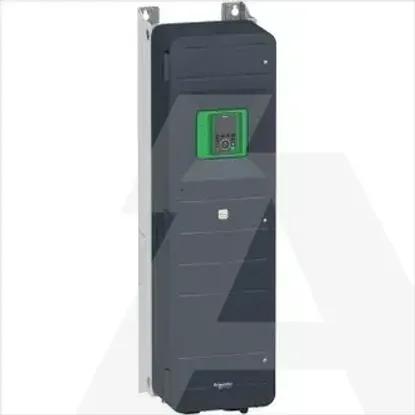

ATV650D75N4 | Frekventni Pret. IP55 75KW 400V/480V
