Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
With control elementYes
Height678mm
Width264mm
Number of digital inputs6
Depth272mm
Number of digital outputs0
Number of analogue inputs3
Supporting protocol for LONNo
Number of analogue outputs2
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Number of HW-interfaces RS-4851
With optical interfaceNo
Supporting protocol for ModbusYes
Supporting protocol for CANNo
Number of HW-interfaces RS-2320
Supporting protocol for INTERBUSNo
Number of HW-interfaces other0
Supporting protocol for ASINo
Supporting protocol for KNXNo
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet1
Supporting protocol for TCP/IPYes
Supporting protocol for PROFIBUSYes
Number of HW-interfaces serial TTY0
Mains voltage380 - 480V
Supporting protocol for SERCOSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for other bus systemsNo
With PC connectionNo
Supporting protocol for DeviceNetYes
Degree of protection (IP)IP55
Supporting protocol for SUCONETNo
Number of phases input3
Application in industrial area permittedYes
Mains frequency50/60 Hz
Max. output at linear load at rated output voltage3kW
Max. output frequency500Hz
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage3kW
Number of interfaces PROFINET0
Number of phases output3
Integrated breaking resistanceNo
4-quadrant operation possibleYes
Type of converterU converter
Supporting protocol for PROFINET IOYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Application in domestic- and commercial area permittedYes
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Nominal output current I2N7.2A
Max. output voltage480V
Relative symmetric net frequency tolerance5%
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

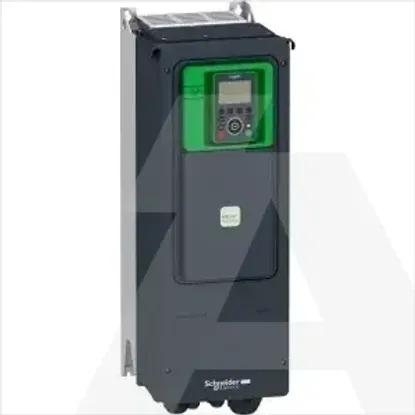

ATV650U30N4 | Frekventni Pret. IP55 3KW 400V/480V
