Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital outputs0
With control elementYes
Width264mm
With optical interfaceNo
Number of HW-interfaces RS-4851
Height678mm
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces USB0
Depth300mm
Number of digital inputs6
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Number of HW-interfaces RS-2320
Number of analogue inputs3
Number of analogue outputs2
Number of HW-interfaces serial TTY0
Supporting protocol for PROFIBUSYes
Supporting protocol for TCP/IPYes
Number of HW-interfaces parallel0
Number of HW-interfaces other0
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Supporting protocol for CANNo
Supporting protocol for ModbusYes
Number of interfaces PROFINET0
Supporting protocol for SUCONETNo
Mains voltage380 - 480V
Degree of protection (IP)IP55
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
4-quadrant operation possibleYes
Number of phases output3
Supporting protocol for other bus systemsNo
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Supporting protocol for SERCOSNo
Integrated breaking resistanceNo
With PC connectionNo
Mains frequency50/60 Hz
Supporting protocol for KNXNo
Type of converterU converter
Number of phases input3
Max. output frequency500Hz
Supporting protocol for INTERBUS-SafetyNo
Max. output at linear load at rated output voltage4kW
Max. output at quadratic load at rated output voltage4kW
Supporting protocol for Foundation FieldbusNo
Relative symmetric net voltage tolerance10%
Max. output voltage480V
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Supporting protocol for SafetyBUS pNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
Supporting protocol for AS-Interface Safety at WorkNo
Nominal output current I2N9.3A
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

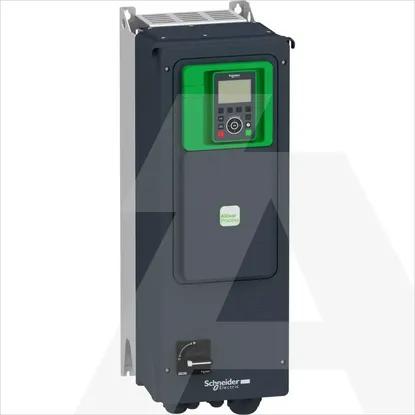

ATV650U40N4E | Frekventni Pret. IP55 4KW 400V/480V
