Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Height295mm
Width210mm
Supporting protocol for LONNo
Depth187mm
With control elementYes
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces parallel0
Number of HW-interfaces USB0
Number of HW-interfaces other0
Number of HW-interfaces RS-4851
Supporting protocol for ASINo
Supporting protocol for PROFIBUSYes
With optical interfaceNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUSYes
Supporting protocol for CANYes
Supporting protocol for other bus systemsYes
Degree of protection (IP)IP20
With PC connectionYes
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Number of interfaces PROFINET0
Number of phases output3
Supporting protocol for SUCONETNo
Mains voltage380 - 480V
Supporting protocol for DeviceNetYes
Type of converterI converter
Mains frequency50/60 Hz
Supporting protocol for INTERBUS-SafetyNo
4-quadrant operation possibleYes
Supporting protocol for SERCOSNo
Supporting protocol for ModbusYes
Max. output at linear load at rated output voltage7.5kW
Max. output frequency1600Hz
Max. output at quadratic load at rated output voltage-kW
Integrated breaking resistanceNo
Number of phases input3
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET IONo
Relative symmetric net voltage tolerance-%
Supporting protocol for SafetyBUS pNo
Relative symmetric net frequency tolerance5%
Max. output voltage480V
Supporting protocol for PROFIsafeNo
Nominal output current I2N17.6A
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

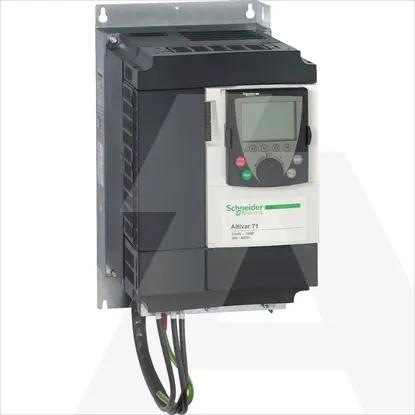

ATV71LD17N4Z | Pretvarac Frek. 480V 3P 17A Lift
