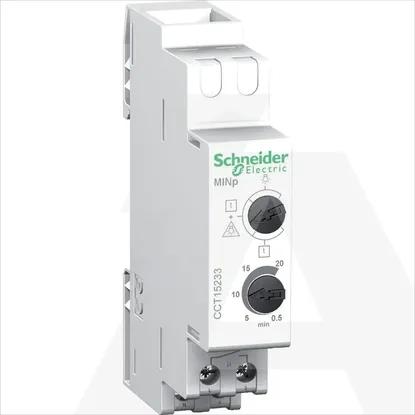

CCT15233 | Stubišni Automat Minp
Code: 1697188
ManufacturerSchneider Electric
Catalog numberCCT15233
TypeCCT15233
CategoryStaircase lighting timer
EAN code3303431062638
Details
- •Devices for distribution board-/surface mounting
- •Staircase lighting timer
- •1 KOM
- •SCHNEIDER
Technical specifications
Control voltage 2- - -V
FunctionElectronic with switching-off pre-warning
Built-in depth66mm
Release-delay0.5 - 20min
Frequency control voltage 250 - 50Hz
Frequency control voltage 150 - 60Hz
Max. load fluorescent lamp (parallel compensated)1200VA
Push button glow-lamp current-mA
Number of contacts as change-over contact0
Pre-warning of switching-offFlickering
Wiring system3 and 4 wire configuration
RepetitiveNone
Number of contacts as normally open contact1
Max. load fluorescent lamp (Duo circuit)3600VA
Max. load fluorescent lamp3600VA
Voltage type of supply voltageAC
Current surge function selectableNo
Supply voltage230 - 230V
Number of contacts as normally closed contact0
Max. incandescent lamp load3600W
Max. switching current (cos phi = 0.6)16A
Mounting methodDIN rail
Width in number of modular spacings1
Control voltage 1230 - 230V
Type of control voltage 1AC
Rated switch current16A
