Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth74mm
Voltage typeAC
Release characteristicOther
Rated voltage250V
Rated current1A
Frequency50 - 60Hz
Width in number of modular spacings1
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 4mm²
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 6mm²
Rated insulation voltage Ui250V
Current limiting class3
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleNo
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Ambient temperature during operating-20 - 60°C
Explosion-proofNo
Number of protected poles1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

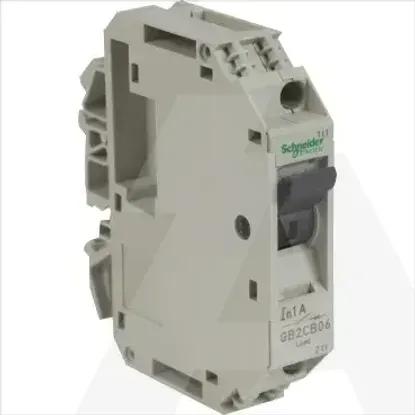

GB2CB06 | Min. Prekidac TeSys_GB2 1P 1A Id=14A
