Details

  • •
  • •Circuit breakers and fuses

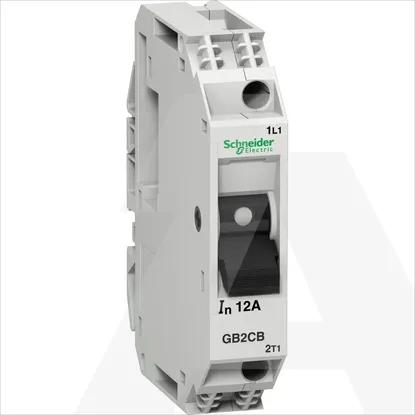

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 6 pcs
  • •SCHNEIDER

Technical specifications

Voltage typeAC
Rated voltage250V
Built-in depth74mm
Current limiting class3
Rated insulation voltage Ui250V
Frequency50 - 60Hz
Width in number of modular spacings1
Explosion-proofNo
Number of protected poles1
Pollution degree2
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Ambient temperature during operating-20 - 60°C
Connectable conductor cross section multi-wired0.75 - 4mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V3kA
Additional equipment possibleNo
Rated impulse withstand voltage Uimp4kV
Over voltage category3
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 6mm²
Rated current3A
Release characteristicOther
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
