Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated current2A
Concurrently switching neutral conductorNo
Current limiting class3
Rated voltage415V
Frequency50 - 60Hz
Over voltage category3
Connectable conductor cross section solid-core0.75 - 6mm²
Built-in depth78mm
Rated insulation voltage Ui415V
Degree of protection (IP)IP20
Number of protected poles2
Release characteristicOther
Width in number of modular spacings2
Pollution degree2
Voltage typeAC
Explosion-proofNo
Ambient temperature during operating-20 - 60°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section multi-wired0.75 - 4mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Additional equipment possibleNo
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

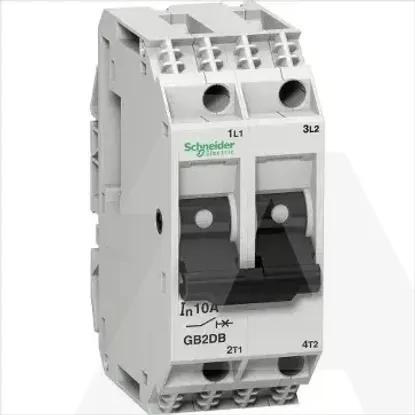

GB2DB07 | Min. Prekidac TeSys_GB2 2P 2A Id=26A
