Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Supporting protocol for CANNo
Supporting protocol for ASINo
Rated control supply voltage Us at AC 50HZ- - -V
Supporting protocol for other bus systemsNo
Supporting protocol for PROFIBUSNo
Rail mounting possibleYes
Supporting protocol for SUCONETNo
Rated control supply voltage Us at AC 60HZ- - -V
Supporting protocol for DeviceNetNo
Supporting protocol for INTERBUSNo
Number of auxiliary contacts as normally closed contact1
Supporting protocol for SERCOSNo
Supporting protocol for TCP/IPNo
Supporting protocol for LONNo
Number of auxiliary contacts as normally open contact1
Supporting protocol for ModbusNo
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUS-SafetyNo
Type of electrical connection of main circuitScrew connection
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
With short-circuit releaseYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Release classCLASS 10
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Rated power, 460 V, 60 Hz, 3-phase-kW
Voltage type for actuatingDC
Rated operation power at AC-3, 230 V, 3-phase-kW
Ambient temperature, upper operating limit60°C
Rated power, 575 V, 60 Hz, 3-phase-kW
Rated conditional short-circuit current, type 2, 230 V-A
Temperature compensated overload protectionYes
Rated conditional short-circuit current, type 1, 600 Y/347 V-A
Rated conditional short-circuit current, type 2, 400 V130000A
Supporting protocol for SafetyBUS pNo
Rated conditional short-circuit current, type 1, 480 Y/277 V-A
Rated operation power at AC-3, 400 V0.75kW
Rated operation current Ie2.5A
Overload release current setting1.63 - 2.5A
Degree of protection (IP)IP20
Rated control supply voltage Us at DC24 - 24V
Type of motor starterDirect online starter (DOL)
Rated operation current at AC-3, 400 V2.5A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

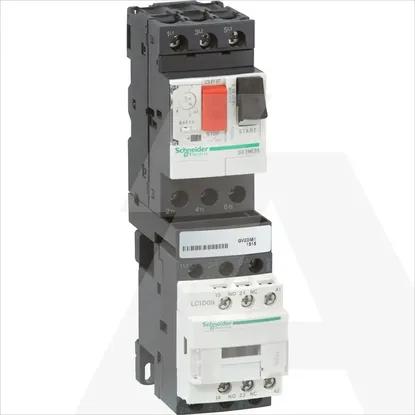

GV2DM107BD | Pokretac Motorski 1,6A 24V DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor starter/Motor starter combination
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Supporting protocol for CAN
Supporting protocol for ASI
Rated control supply voltage Us at AC 50HZ
- .. -V
Supporting protocol for other bus systems
Supporting protocol for PROFIBUS
Rail mounting possible
Supporting protocol for SUCONET
Rated control supply voltage Us at AC 60HZ
- .. -V
Supporting protocol for DeviceNet
Supporting protocol for INTERBUS
Number of auxiliary contacts as normally closed contact
1
Supporting protocol for SERCOS
Supporting protocol for TCP/IP
Supporting protocol for LON
Number of auxiliary contacts as normally open contact
1
Supporting protocol for Modbus
Supporting protocol for Data-Highway
Supporting protocol for INTERBUS-Safety
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Supporting protocol for PROFINET CBA
Supporting protocol for DeviceNet Safety
Supporting protocol for EtherNet/IP
With short-circuit release
Supporting protocol for Foundation Fieldbus
Supporting protocol for AS-Interface Safety at Work
Release class
CLASS 10
Supporting protocol for PROFINET IO
Supporting protocol for PROFIsafe
Rated power, 460 V, 60 Hz, 3-phase
-kW
Voltage type for actuating
DC
Rated operation power at AC-3, 230 V, 3-phase
-kW
Ambient temperature, upper operating limit
60°C
Rated power, 575 V, 60 Hz, 3-phase
-kW
Rated conditional short-circuit current, type 2, 230 V
-A
Temperature compensated overload protection
Rated conditional short-circuit current, type 1, 600 Y/347 V
-A
Rated conditional short-circuit current, type 2, 400 V
130000A
Supporting protocol for SafetyBUS p
Rated conditional short-circuit current, type 1, 480 Y/277 V
-A
Rated operation power at AC-3, 400 V
0.75kW
Rated operation current Ie
2.5A
Overload release current setting
1.63 .. 2.5A
Degree of protection (IP)
IP20
Rated control supply voltage Us at DC
24 .. 24V
Type of motor starter
Direct online starter (DOL)
Rated operation current at AC-3, 400 V
2.5A
